ਤਿੰਨ-ਪੜਾਅ ਤਿੰਨ-ਤਾਰਾਂ ਦੇ ਰੈਕ ਐਕਸੀਲਮਨ ਐਕਟਿਵ ਪਲੱਸਟ ਫਿਲਟਰ
ਐਕਟਿਵ ਸਲੇਮਿੰਗ ਸਪੋਰਟਸ ਮਾਉਂਟ ਮਾਉਂਟ ਮਾਉਂਟ ਮਾਉਂਟ ਮਾਉਂਟ ਮਾਈਮਾਸਟ ਅਤੇ Energy ਰਜਾ ਕੁਸ਼ਲਤਾ ਲਈ ਤਿਆਰ ਕੀਤਾ ਗਿਆ ਇੱਕ ਵਧੀਆ ਮੁੱਲ ਪ੍ਰਾਪਤ ਕਰੋ. ਗਯਾ ਪਾਵਰ ਕੁਆਲਿਟੀ ਵਿੱਚ ਸੁਧਾਰ ਲਈ ਚਾਈਨਾ ਦੇ ਲਾਗਤ-ਪ੍ਰਭਾਵਸ਼ਾਲੀ ਹੱਲ ਦੀ ਪੇਸ਼ਕਸ਼ ਕਰਦਾ ਹੈ, ਵੱਖ ਵੱਖ ਐਪਲੀਕੇਸ਼ਨਾਂ ਲਈ ਆਦਰਸ਼. ਵਧੇਰੇ ਜਾਣਕਾਰੀ ਲਈ ਸਾਡੇ ਨਾਲ ਸੰਪਰਕ ਕਰੋ ਅਤੇ ਸਭ ਤੋਂ ਵਧੀਆ ਸੌਦਾ ਸੁਰੱਖਿਅਤ ਕਰਨ ਲਈ!

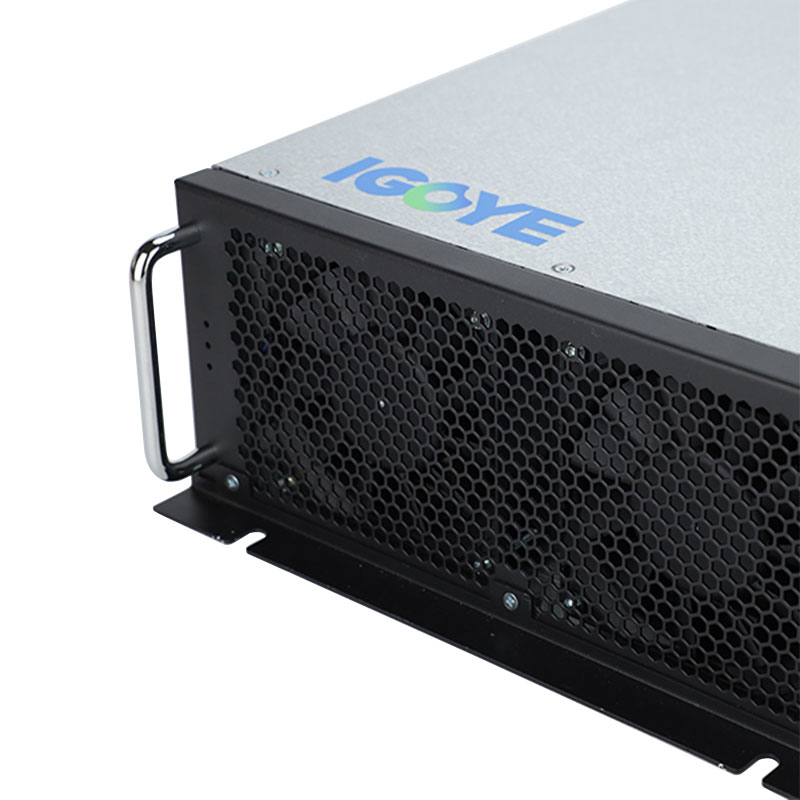

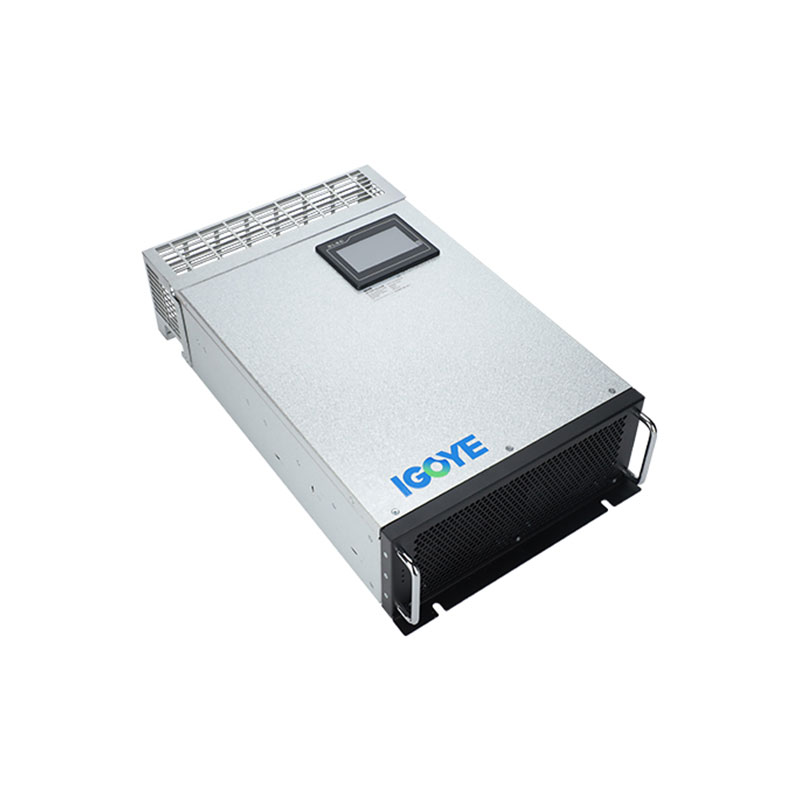

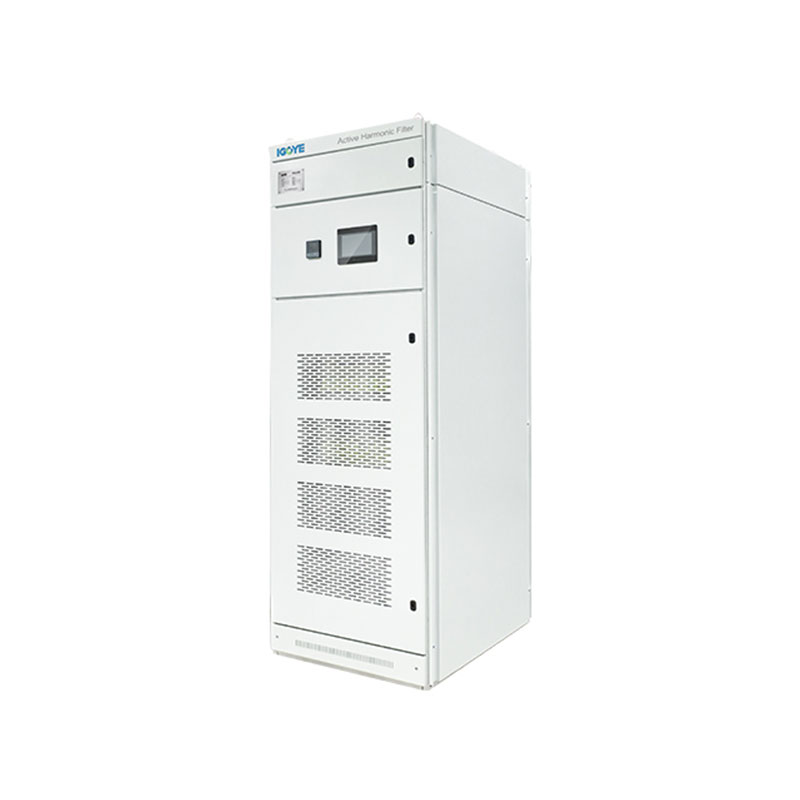

The Three-phase Three-Wire Rack Mount Active Harmonic Filter (AHF) offers advanced harmonic mitigation for three-phase power systems. Employing a DSP+CPLD digital control core and sophisticated algorithms, this rack-mounted AHF effectively neutralises harmonic currents up to the 50th order. Modular design ensures scalability and ease of maintenance. Available in various current ratings (25A to 150A) and voltage levels (220V to 690V), the AHF provides flexible configuration options. Forced air cooling guarantees reliable operation. This Three-phase Three-Wire Rack Mount Active Harmonic Filter enhances power quality and system stability.
Model description:
| GY | AHF | 0.4 | 50A | / | 3L | R |
| Enterprise code | Active Harmonic Filter |
Voltage level 0.22:220V 0.4:380V±20% 0.5:500V±20% 0.69:690V±20% |
Rated Capacity（kvar） 25/50/75 /100/150A | 3L:Three-phase three-wire | R:Rack mount |
Features:
● Use DSP+CPLD all digital control core, three-level topology technology,
advanced harmonic detection algorithm and PWM control strategy to achieve
accurate compensation of harmonic current.

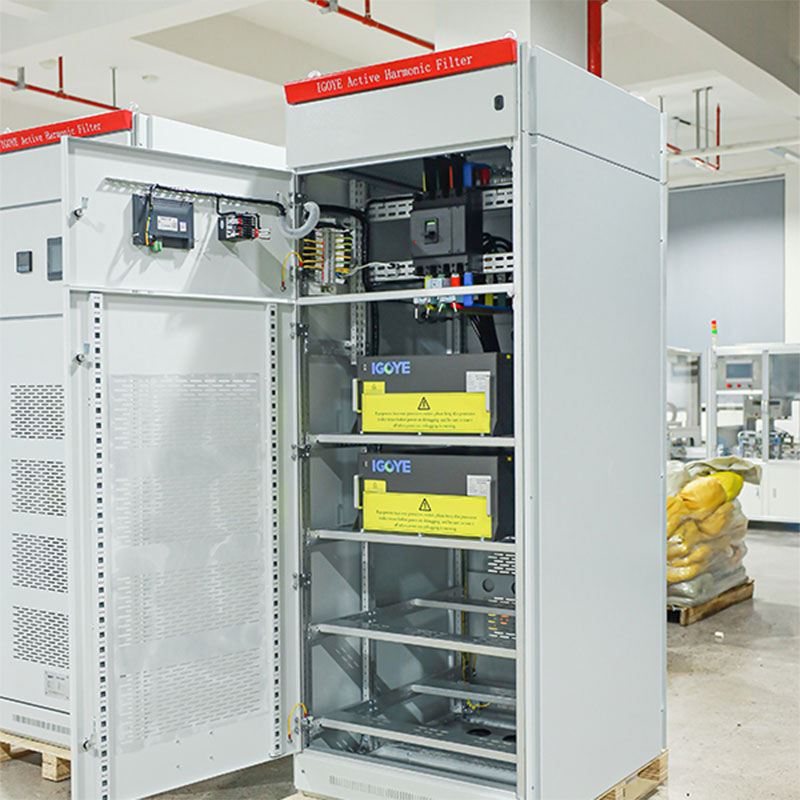

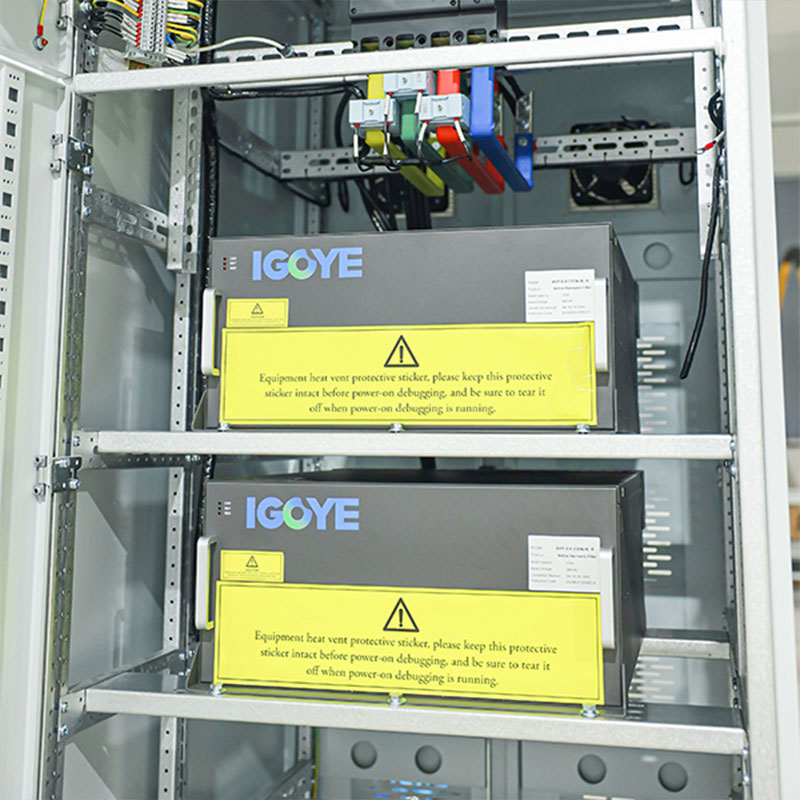

● Adopt modular design, which facilitates parallel connection of multiple
modules, takes up little space and is easy to maintain.
● The structural design of independent air ducts and independent warehouses
ensures the stable operation of the equipment.
● It can filter harmonics in a wide range of harmonics, from 2 to 50
harmonics, and solve the problem of three-phase unbalance at the same time.
● The harmonic filtering rate is high. If the capacity allows, the harmonic
current filtering rate can be as high as 95%. Set 100% current limiting
output to ensure long-term stable operation of the equipment.
Applications:
Three-phase Three-Wire Rack Mount Active Harmonic Filters are essential for ensuring clean power across diverse sectors:
● Industrial Automation: Enhancing the performance and
lifespan of three-phase equipment by reducing harmonic distortion.
● Renewable Energy Systems: Integrating renewable energy
sources seamlessly into the grid by mitigating harmonic currents.
● Oil and Gas Industry: Providing stable power for critical
operations in harsh environments, improving efficiency and safety.
● Manufacturing Plants: Minimising harmonic interference in
complex manufacturing processes, ensuring consistent product quality.
Three-phase Three-Wire Rack Mount Active Harmonic Filters offer robust and adaptable harmonic mitigation solutions for demanding three-phase applications.
Technical Parameters:
| 220V series | 380V series | 500V series | 690V series | ||
| Altitude | < 2000m, above 2000m, derate according to GB/T3859.2 | ||||
| Ambient temperature | -20～+50℃ | ||||
| Relative humidity | ≤90%, no condensation on the surface when the monthly minimum temperature is 25℃ | ||||
| Pollution level | Level III below | ||||
| Operating Voltage | AC220V±20% | AC380V±20% | AC500V±20% | AC690V±20% | |
| Working frequency | 50Hz±5% | ||||
| Compensation current | 25A | 25/50/75/100 /150A | 100A | 100A | |
| Grid structure | L/N | 3P3W/3P4W | 3P3W/3P4W | 3P3W/3P4W | |
|
Number of units connected in parallel |
Ulimited | ||||
| Overall machine efficiency | ≥97% | ||||
| Grid structure | 32kHz | 16kHz | 12.8kHz | 12.8kHz | |
| Compensation range | 2～50times, single compensation rate is adjustable | ||||
| Function selection | Reactive power | Reactive power, reactive power + asymmetry | |||
|
Reactive power compensation rate |
≥95% | >92% | |||
|
Neutral filtering capability |
Neutral line filtering capability is 3 times that of phase filtering capability | ||||
| Full response time | ＜10ms | ＜40ms | ＜40ms | ＜40ms | |
| Noise | ≤60dB | ≤60dB | ≤65dB | ≤65dB | |
| Control method | 2-way RS485 interface (supports GPRS/WIFI) | ||||
| Protection | Overload, software/hardware overcurrent, grid overvoltage and undervoltage, power failure, overtemperature, frequency abnormality protection, etc. | Overload, software/hardware overcurrent, grid overvoltage and undervoltage, grid voltage imbalance, power failure, overtemperature, frequency abnormality, short circuit protection, etc. | |||

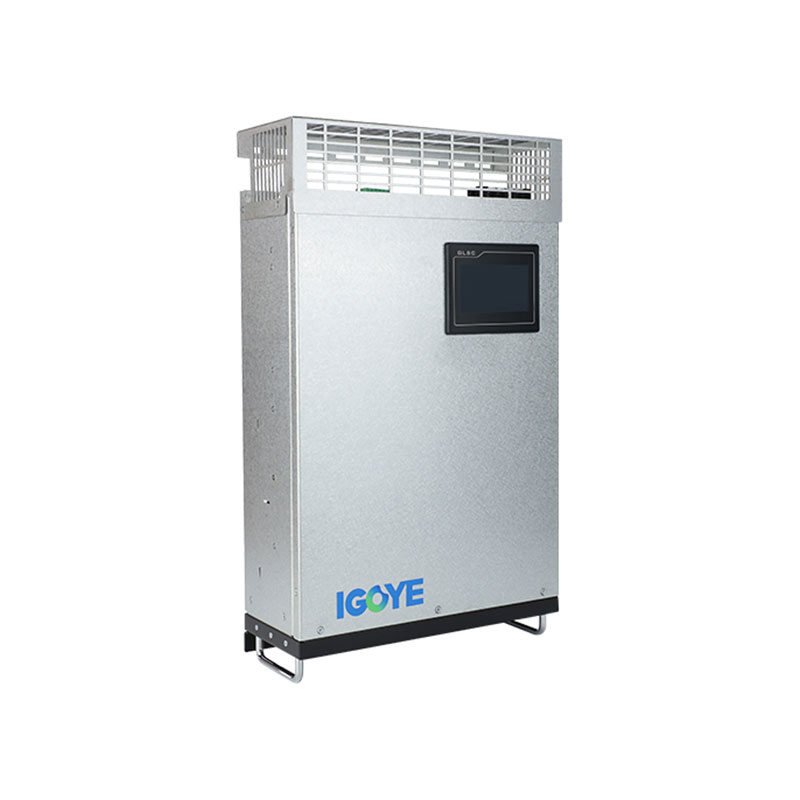

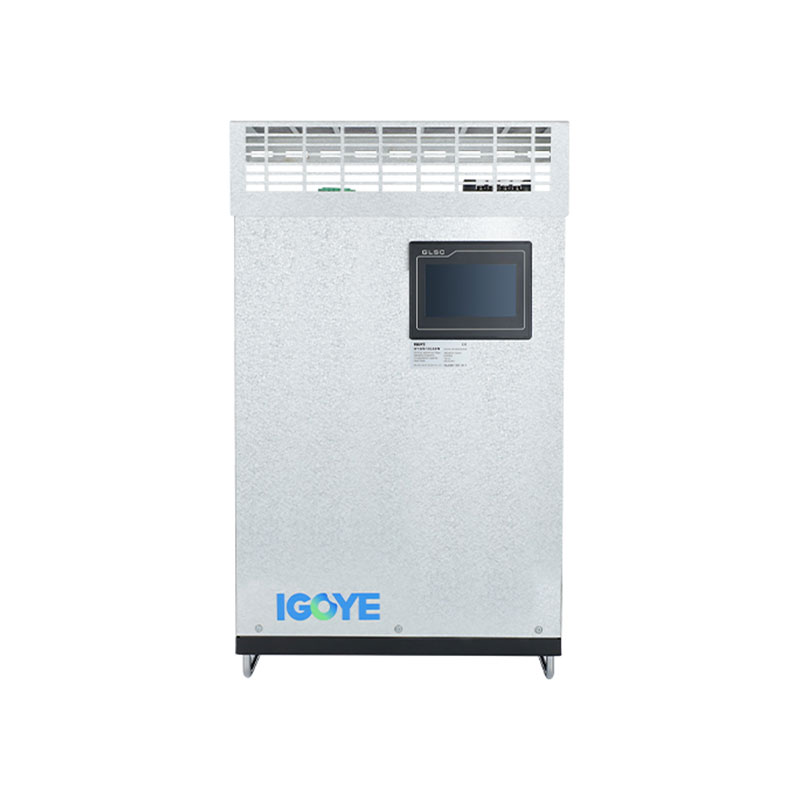

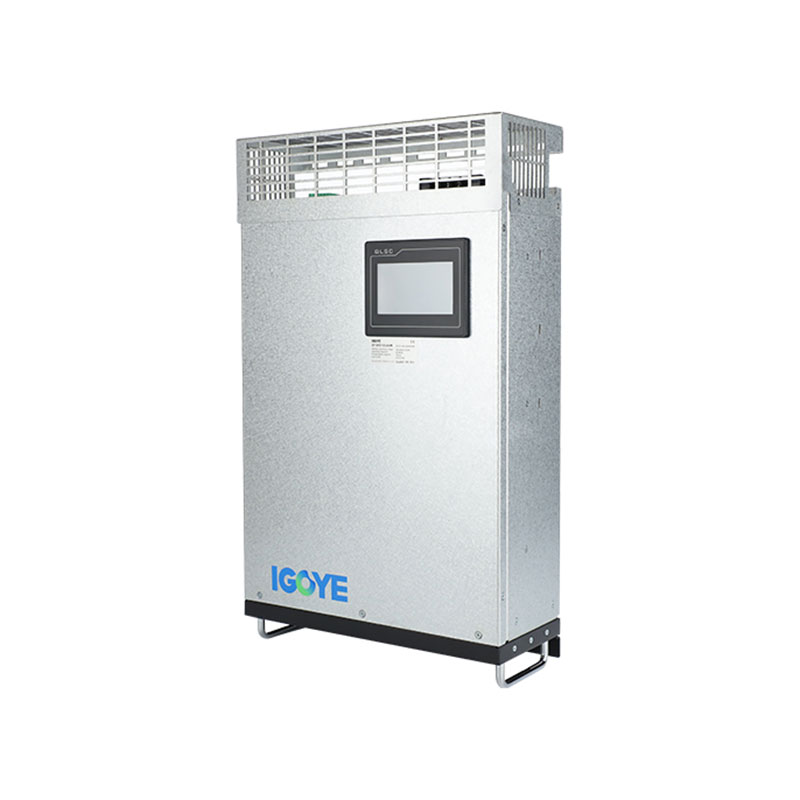

| Installation method | Rack/wall-mounted | Rack | |||
| Incoming line | Back incoming（rack type）、 upper incoming（wall-mounted） | Back incoming line | |||
| Protection level | IP20 | ||||
Model& Specification:
| Models | ||||
|---|---|---|---|---|
| Model Number | Rated Current(A) | System voltage (V) | Dimensions (D*W*H) | Cooling method |
| GY APF-0.22-25A/2L-R/W | 25 | 220 | 220*330*160mm | Forced air cooling |
| GY APF-0.4-25A/4L-R/W | 25 | 380±20% | 460*490*89mm | |
| GY APF-0.4-50A/4L-R/W | 50 | 380±20% | 460*490*89mm | |
| GY APF-0.4-75A/4L-R/W | 75 | 380±20% | 500*510*190mm | |
| GY APF-0.4-100A/4L-R/W | 100 | 380±20% | 500*550*240mm | |
| GY APF-0.4-150A/4L-R/W | 150 | 380±20% | 500*550*240mm | |
| GY APF-0.5-100A/4L-R/W | 100 | 500±20% | 495*675*275mm | |
| GY APF-0.69-100A/4L-R/W | 100 | 690±20% | 495*675*275mm | |
